Bearing Puller Reach vs. Spread: What Matters Most
A lot of bearing-removal damage comes down to getting bearing puller reach and spread wrong. Pick the wrong puller and you damage the housing, the shaft, or the races around the seat. The specs decide the outcome before you ever touch a handle.

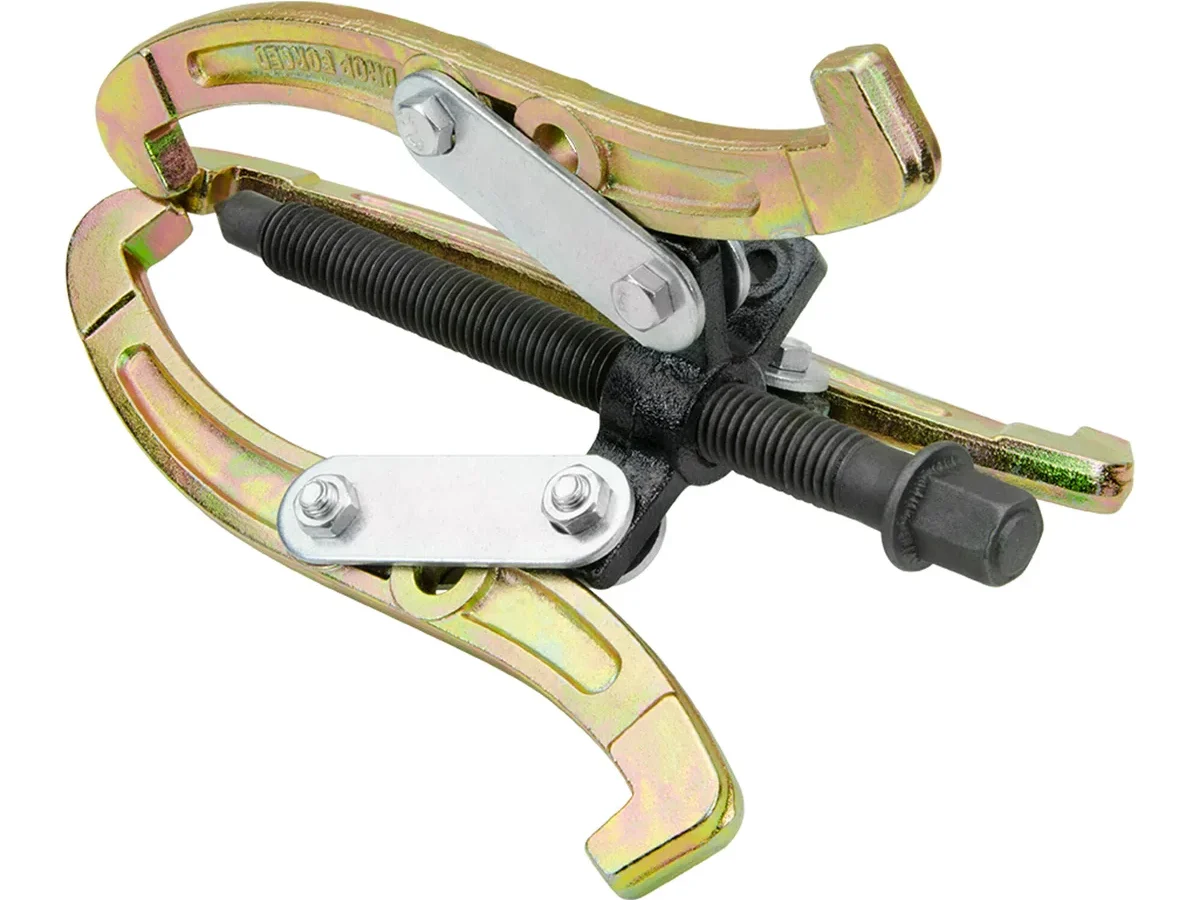

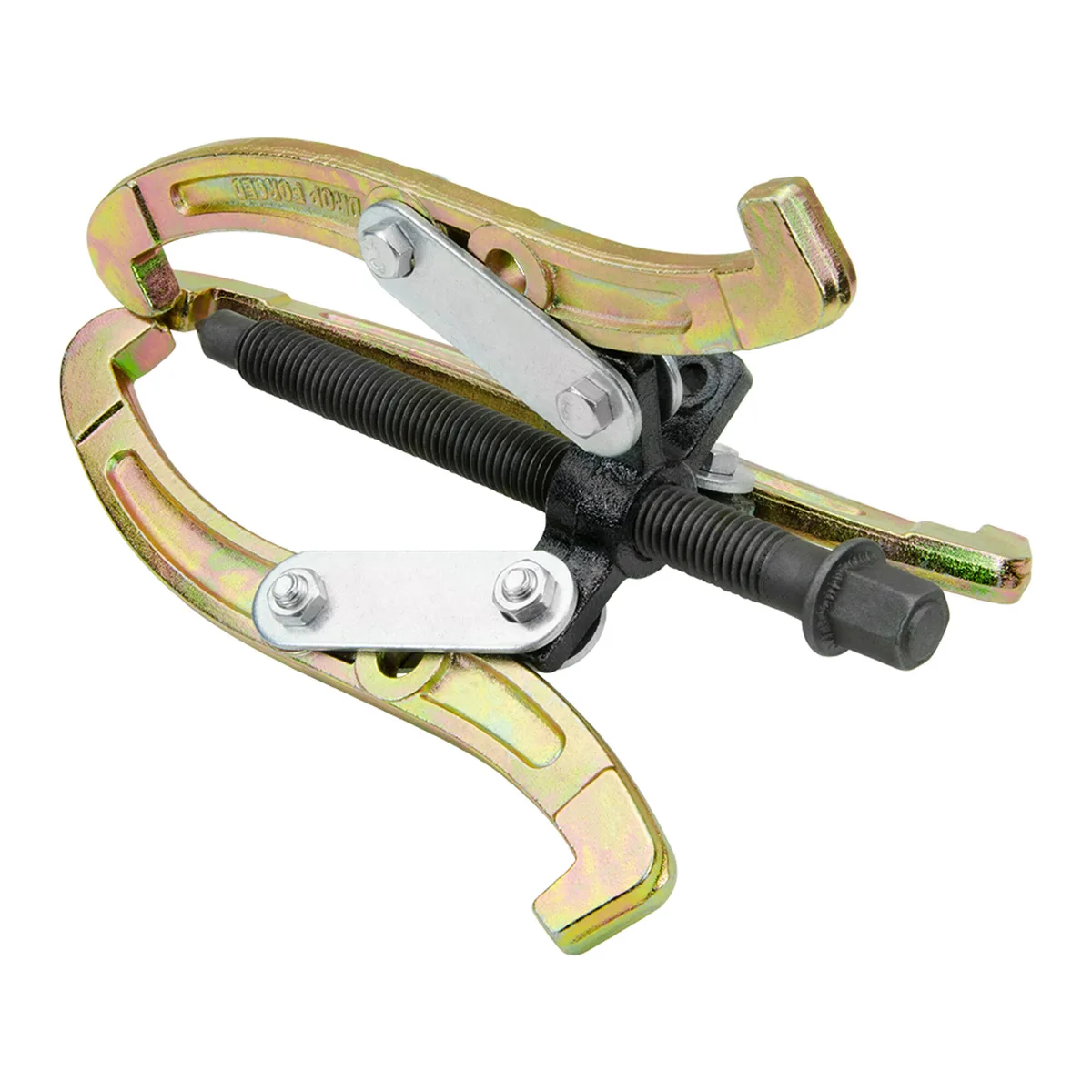

In practice, a puller with enough reach and spread sits under the flange and grips the hub for a straight axial pull. Without that geometry, the jaws slip or the force comes off-center. The right dimensions matter more than the tonnage rating.

Image source: Bing (Web (fair-use with source credit))
Quick Answer
Bearing puller reach is how deep the jaws fit under a bearing flange. Spread is the widest distance between opposite jaw tips. Reach decides seating.
Spread decides gripping ability. Both must fit the bearing and hub dimensions.
Why Reach and Spread Decide Your Bearing Removal Success
The whole point of a bearing puller is to extract a bearing by pulling straight along the shaft. No hammering, no prying. That axial force protects the housing, the shaft, and the races.
A puller with enough reach and spread sits under the flange and grips the hub cleanly. Force goes straight through the center of the bearing. That is how a well-fitting tool does its job.
If either dimension is off, the jaws slip or the force lands off-axis. You end up bending the shaft, cracking the race, or scoring the housing. In many cases the bearing comes free, but the surrounding parts need replacement anyway.
There is no amount of pulling force that overcomes poor geometry. A puller rated for 10 tons still fails on a 3-inch bearing if its reach falls short. Always check reach and spread before reaching for the tool in the right puller class.
Breaking Down the Specs: Reach vs. Spread Defined
Reach and spread are two distinct measurements. Mixing them up is the most common source of puller mis-selection. Reach is the deepest point the jaws can seat under a bearing flange.

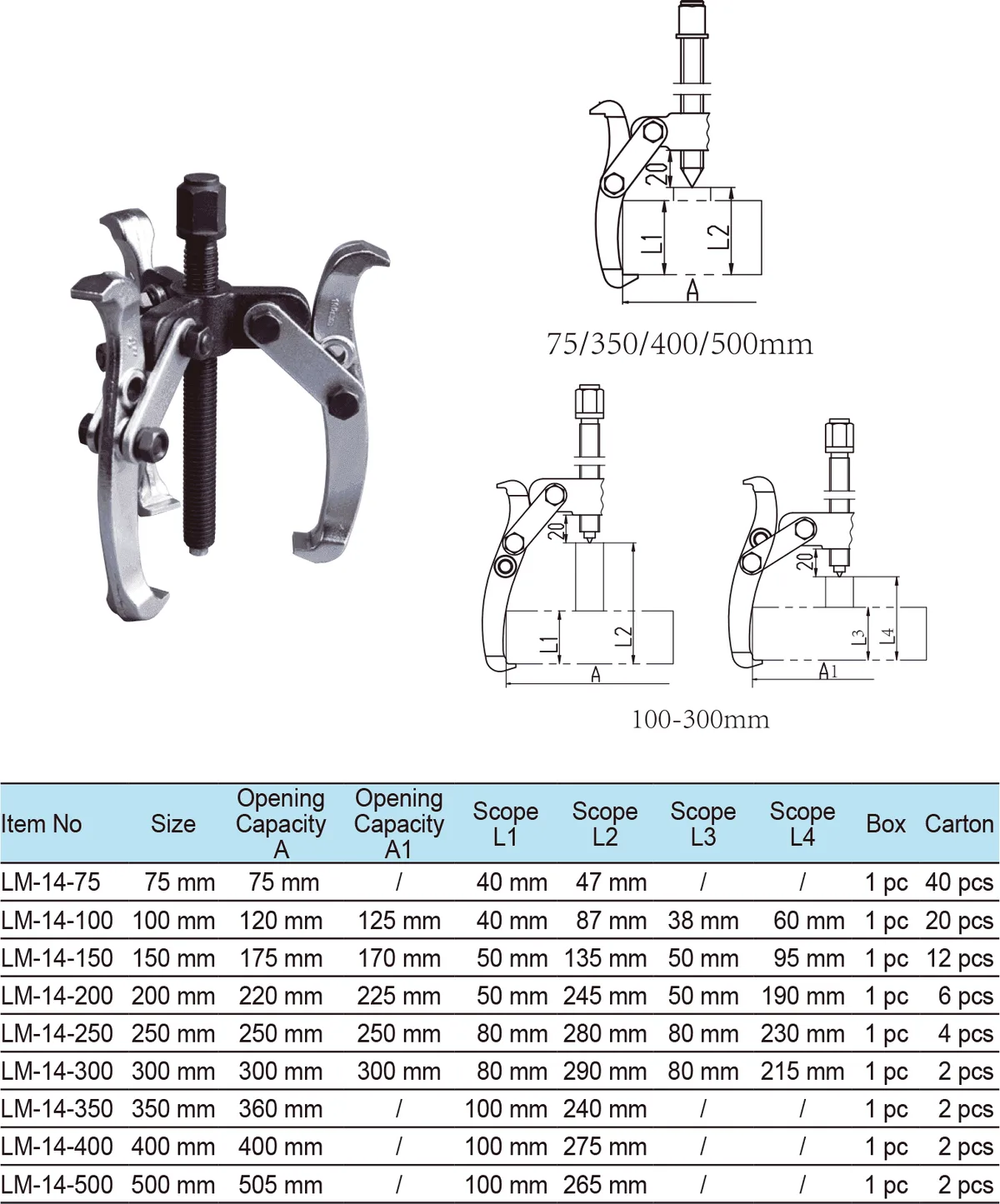

Measured from the puller body to the jaw tip's innermost contact. Spread is the maximum distance between opposite jaw tips when the center screw is fully extended.

Image source: Bing (Web (fair-use with source credit))
Both dimensions depend on body size and screw length.
| Puller Class | Typical Reach | Typical Spread |
|---|---|---|
| Small | 1 to 3 inches | 2 to 5 inches |
| Mid-range | 2 to 5 inches | 4 to 10 inches |
| Industrial | 3 to 6 inches | 6 to 18 inches |
Bearings themselves follow standardized dimensions per ISO 281. Rigging requirements fall under ASME B30.5. Pullers rated below 5 tons do not belong on heavy equipment like wind turbines or large pumps.
There is a real trade-off between reach and spread on smaller bodies. Manufacturers often shrink spread to preserve structural strength. A puller with a long center screw typically has more reach but less maximum spread.
Pulling capacity is rated under ideal conditions. Real jobs rarely deliver perfect axial load. Reference puller selection charts to cross-check both dimensions before picking a tool.
2-Jaw vs. 3-Jaw: How Jaw Count Affects Reach

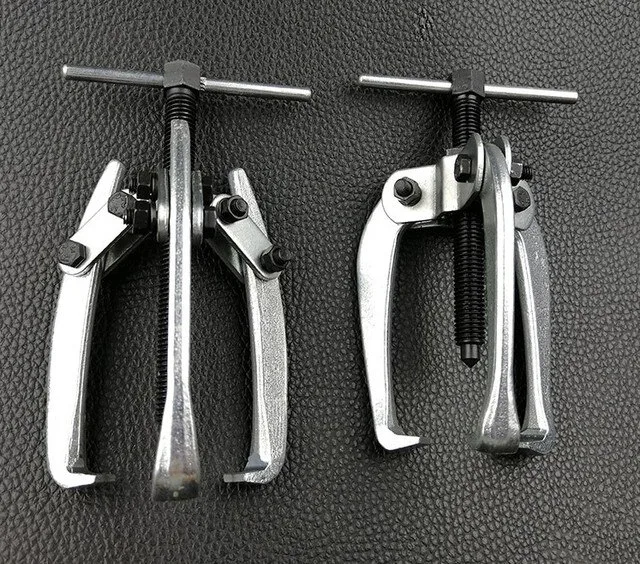

A 2-jaw puller does not require symmetric bearings. It works on gear pullers, and on bearings with thin flanges that sit shallow. Jaws only reach to where they make contact, so the effective reach is shorter.
A 3-jaw puller distributes force symmetrically across three points. It self-centers on the shaft with less manual adjustment. All three jaws must seat fully.
This means the hub needs more depth than a 2-jaw setup.

Image source: Bing (Web (fair-use with source credit))
When 2-Jaw Wins
2-jaw pullers excel when the bearing has a shallow seat. Gear pullers on transmissions and differentials are classic examples. Manual alignment of the centering screw is required before applying force. 2-jaw units are smaller, lighter, and easier to store in tight spaces.
They do not center themselves, so you align before pulling.
On automotive work, 2-jaw gear pullers are often the go-to. See a dedicated automotive puller guide for context on where 2-jaw beats 3-jaw in vehicle applications.
When 3-Jaw Wins
3-jaw pullers deliver true centering through symmetric force. They are better on larger bearings and on industrial equipment where off-axis load can bend the shaft. The three jaws demand more reach and more spread to fully seat.
If the hub is too shallow or too small in diameter, a 3-jaw will not fit at all.
3-jaw pullers are heavier and typically more expensive. They also require more workspace around the bearing. For high-value work, the extra force symmetry pays off quickly.
Internal vs. External Pullers: Managing the Spread Limit

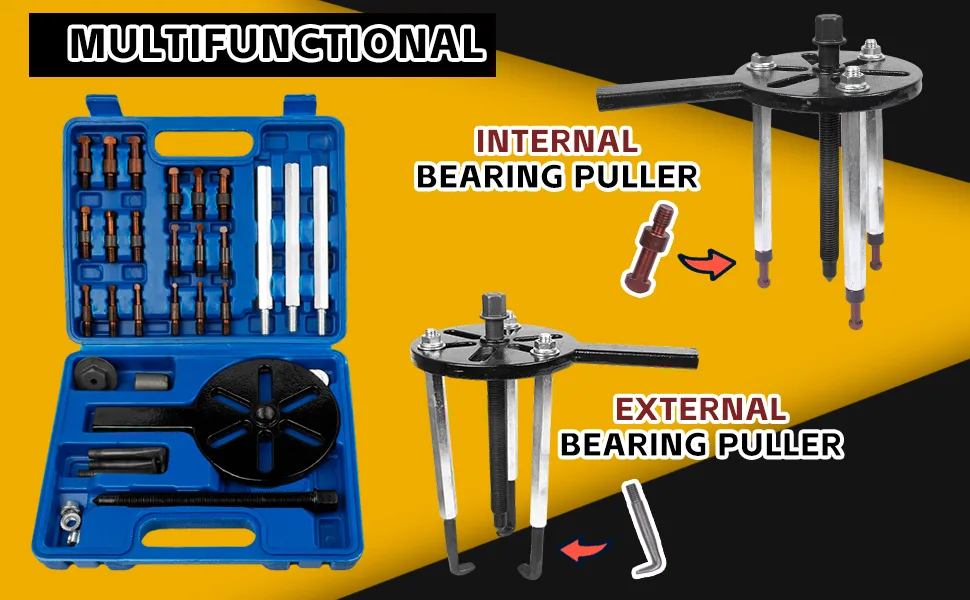

Internal and external pullers handle the spread problem very differently. External pullers wrap around the outside of the bearing. Jaws reach in from the outside and hook under the flange.
Internal pullers reach inward, through the center of the bearing. Jaws hook into the inner wall of the hub. They work when the bearing protrudes through a flange and you cannot access the outside.

Image source: Bing (Web (fair-use with source credit))
External Puller Constraints
External pullers demand more spread. The jaws have to reach all the way under a wide flange. Structurally, external pullers are stronger because the body sits outside the hub.
The spread limit bites when the bearing flange is wide. Reach becomes the constraint when the bearing sits deep under a housing. In either case, choose external when the outside is open and you want max pulling strength.
Internal Puller Constraints
Internal pullers face a tighter spread ceiling. The hub ID has to be wide enough for the jaws to grip. The center screw has to be long enough for the shaft to support.
When you cannot access the outside of the bearing, an internal puller is often the only option. Reference guides on choosing the right puller for matching internal tools to specific mounting geometries.
Internal pullers require the shaft to protrude enough for the jaws to reach around. Reach is limited by shaft length past the bearing. In tight installations, internal pullers may require partial disassembly first.
The decision comes down to which constraint limits you. Reach for external, spread for internal. Pick based on which dimension is tighter.
How to Measure Reach and Spread for Your Specific Bearing
You measure reach and spread before you reach for a puller. The bearing dimensions tell you which class of puller fits. You do not need a certified instrument.
A tape measure and a feeler gauge are enough.
Step 1. Inspect the bearing and hub. Note the seating method (interference fit, snap ring, taper).
Step 2. Measure the outer diameter of the hub. This defines the spread requirement.
Step 3. Measure the flange diameter if using an external puller. This defines the minimum spread.
Step 4. Measure seat depth for bearing pullers. This defines the minimum reach.
Step 5. Compare your numbers against puller specs.
Step 6. Check the center screw thread size to make sure it will accept the shaft.
| Measurement Needed | What It Determines | Typical Source |
|---|---|---|
| Hub outer diameter | Spread requirement | Hub bore, tape measure |
| Flange diameter | Minimum spread | Bearing spec sheet |
| Seat depth | Reach requirement | Feeler gauge |
| Hub inner diameter | Internal puller fit | Hub ID |
| Shaft diameter | Center screw thread | Shaft spec |
The hub underneath the bearing is what matters. Not the bearing itself. The bearing diameter tells you where it seats.
The hub tells you whether the jaws can actually grip.
Jaws need positive engagement. If the hub is too small, the jaws slip off. Reference specialty tools for car repair if your application is automotive and the bearings sit unusually tight.
Common Mistakes When Measuring Reach and Spread
Mixing up reach and spread is the number one error. Reach is depth, spread is width. They're not interchangeable.
A puller that meets one spec fails on the other if you swap them.
Ignoring seat depth is the second most common mistake. Bearings sit in hubs with interference fits. The jaws need to reach under the flange, not just the bearing face.
Measure from the bearing face to the bottom of the seat. That's your actual reach requirement.
Skipping the center screw thread check causes mounting failures. If the shaft diameter doesn't match the puller's thread size, you can't mount the tool. Measure the shaft first.
Reference the tool variants to match threads to shaft sizes.
Not verifying jaw type leads to slippage even with correct dimensions. Plain jaws need smooth hubs. Tapered jaws need matching angles.
Serrated jaws bite into softer materials. Wrong jaw type causes the puller to slide off even when reach and spread are correct.
Assuming puller tonnage equals bearing weight is a myth. Rated capacity refers to the tool's structural limit, not bearing mass. A heavy bearing on a large puller can still damage the hub if the jaws can't seat.
Frequently Asked Questions About Puller Dimensions
What's the difference between reach and spread on a puller?
Reach is how far the jaws extend from the puller body. Spread is how wide they open. Reach seats under the flange.
Spread grips the hub. Both dimensions need to fit your bearing and hub. Confusing them leads to buying the wrong tool.
Which matters more: reach or spread?
Both matter, but spread usually decides first. If the spread is too wide, the puller body won't fit in the space around the bearing. If the reach is short, the jaws won't seat under the flange.
Always check spread first, then verify reach against the actual seat depth.
What if the bearing is larger than my puller?
If the bearing OD exceeds your puller's maximum spread, you need a bigger puller. There's no workaround except using an internal puller if the housing geometry allows it. Reference a tool reference for upgrade options and sizing charts.
Does a heavier bearing need a bigger puller?
Not always. Bearing weight and pulling force don't correlate directly. What matters is how well the jaws grip and how straight the axial load is.
A heavy bearing with good geometry extracts cleanly with a smaller puller. Geometry beats tonnage every time.
Can I use two pullers on one bearing?
Yes, if the bearing has multiple flanges or the housing geometry allows it. Position both pullers symmetrically around the shaft. This is common on industrial equipment.
Reference the matching crosswalk for multi-puller setups and load distribution tips.
Decision Guide: Selecting the Right Configuration
Pick based on the geometry of your installation. Measure first. Reference the tool matching guide for quick matching.
Can you access the outside of the bearing?
- Yes: Use an external puller. Stronger, better structural integrity.
- No: Use an internal puller. The only option when the outside is blocked.
Is the bearing symmetric (round)?
- Yes: 3-jaw puller self-centers. Cleaner, more even force.
- No (thin flange, gear puller): 2-jaw puller works with manual centering.
Is the hub shallow?
- Yes: 2-jaw puller, shorter reach needed.
- No (deep seat): 3-jaw puller with enough reach.
Is the bearing flange wide?
- Wide flange: External puller with maximum spread.
- Narrow flange: Either type works. Spread is less limiting.
Is the bearing heavy or tightly fitted?
- Heavy/interference fit: Hydraulic puller for controlled force.
- Lighter or snap-fit: Mechanical screw-type puller.
Are jaws slipping?
- Plain jaws slipping: Switch to tapered or serrated jaws.
- Jaw tips worn: Replace jaws with a matching set.
- Hub too small for spread: Switch to an internal puller.
What if none of the pullers in your kit fit?
Borrow a larger puller from a neighboring shop. Rent from a tool supplier. For unusually large bearings, a hydraulic press may be the better option.
Reference the matching crosswalk for special cases where alternative extraction methods apply cleanly.
What if the bearing is seized and the puller reaches its limit?
Do not force it. A seized bearing under max force risks damaging the hub or shaft. Apply heat to loosen the interference fit.
Then retry with the same puller. Reference the tool variant guide for heat-assisted extraction techniques. In extreme cases, replace the shaft and bearing as a matched set.
When in doubt, which spec do you verify first?
Check spread against the bearing flange diameter. Confirm reach against the actual seat depth. Then verify the center screw thread matches your shaft.
That three-step check catches 90 percent of puller mis-selections.
