When to Use a Bearing Separator: Practical Tips

You are asking about when to use a bearing separator, but most people confuse this component with a standard spacer sleeve. A true bearing separator is a custom-machined part designed to isolate thermal loads or decouple vibration modes. It is not a generic catalog item you just pick up at a hardware store.

In our research of high-speed spindle applications, we found that these components are only necessary when thermal gradients exceed specific thresholds. Per ISO 15243 guidelines, maintaining proper shaft stiffness is critical for precision. If your machine does not face these specific engineering constraints, you likely do not need one.

Quick Answer

A bearing separator is needed to manage thermal expansion in long shafts. Use it when heat causes uneven growth across the span. It also isolates vibration between drive stages.

If your shaft is short and cool, you do not need one.

What a Bearing Separator Actually Does (And When It Does Not)

Image source: Bing (Web (fair-use with source credit))

A bearing separator acts as a structural bridge between two bearing sets. It creates a defined gap that controls how loads travel through the shaft. Think of it as a customized spacer that also manages stress.

Standard spacers just fill space; separators actively manage the physics of the assembly.

Is It Just a Thicker Washer?

No. A simple washer or shim only sets the preload on the bearings. It does not address the material's reaction to heat or speed.

A separator often has a specific diameter that matches the shaft's thermal profile. It might be thinner than the shaft to allow for expansion. This difference matters when you run machines at high RPMs.

When Is It Unnecessary?

If your shaft is under six inches, you probably do not need one. Thermal growth is minimal at that length. Most standard CNC lathe or milling spindles use simple thrust washers.

Adding a complex separator here adds cost without benefit. It only becomes relevant in multi-stage gearboxes or long drive trains.

The Core Function

The main job is to prevent "load bleeding." This is where axial forces from one side of the shaft creep over to the other side. This causes preloaded bearings to take on loads they were not designed for. The separator stops this by creating a rigid, controlled section.

It ensures each bearing set handles only its assigned load.

If you are already struggling with shaft alignment issues, you might benefit from reviewing how you remove damaged components first. Understanding the right way to extract a worn part prevents damage to the housing. This foundation matters before you even think about installing new isolation hardware.

How to remove damaged parts safely is a crucial step in the overhaul process.

The Three Real-World Scenarios Where You Need One

Image source: Bing (Web (fair-use with source credit))

Most machines run fine without a separator. But three specific conditions change that advice. These are the times when the standard parts simply cannot keep up with the physics.

Scenario 1: Extreme Thermal Gradients

This is the most common reason. Imagine a motor housing that gets very hot while the spindle stays cool. The shaft expands unevenly.

This pushes the bearings out of alignment. A separator with low thermal conductivity can break this heat path. It stops the expansion from traveling down the shaft.

This keeps the bearing preloads stable despite the temperature swings.

Scenario 2: Vibration Decoupling

High-speed machines often resonate at certain frequencies. The drive motor vibrates and transfers that energy to the cutting tool. This ruins surface finish and shortens tool life.

A separator can act as a mechanical isolator. It breaks the direct stiffness path between the two sections. This dampens the transmission of vibration.

The machine runs smoother, and the final product looks better.

Scenario 3: Complex Load Paths in Gearboxes

In multi-stage reduction gearboxes, axial loads can get confusing. The gears create side loads that want to move the shafts axially. Without isolation, these loads fight each other.

A separator defines exactly which bearing takes the forward load and which takes the reverse. It cleans up the load map. This allows you to size the bearings correctly without massive safety factors.

Decision Flowchart: Do You Actually Need It?

You do not need to guess. Follow this logical sequence to make the right call. It saves you money if you skip it and prevents failure if you install it.

Step 1: Check the Thermal Data

Measure the temperature difference between the bearing seats. If the delta is under 15 degrees Celsius, you are likely fine. If it is over 25 degrees, you have a problem.

Thermal expansion becomes significant at that point. You need a component that can handle the growth. A standard steel spacer will just transmit that heat.

Step 2: Analyze the Vibration Spectrum

Run a vibration study on the current setup. Look for peaks that correlate with motor speed. If you see subsynchronous resonance, your shaft system is too flexible.

A separator can increase local stiffness or isolate the mode. This is a strong signal to use one. If the vibration is just misalignment, fix the alignment first.

Do not buy a separator to mask a simple error.

Step 3: Review the Load Vectors

Draw a free-body diagram of your shaft. Mark every force. If you see axial loads crossing from the drive side to the working side, you have a conflict.

The bearings are fighting each other. A separator resolves this by blocking the axial path. It forces the loads to stay in their designated zones.

This is a design fix, not a maintenance hack.

The "No" Branch

If the temperature is stable, the vibration is clean, and the loads are separated, do not install one. A standard spacer is cheaper and easier to find. Adding complexity without a reason creates new failure points.

Keep it simple unless the data tells you otherwise.

If you are replacing the entire assembly, you need the right tools for the job. Making sure you have the correct extraction force is vital to avoid cracking the housing. This is why professionals always check their equipment first.

Choosing the right extraction tool ensures you do not damage the press fit during the swap.

Material Selection and Fit Tolerances

Choosing the right material is non-negotiable. A separator is a critical structural member. If it fails, the whole shaft assembly is compromised.

You have to think about heat, speed, and load simultaneously.

Image source: Bing (Web (fair-use with source credit))

Steel vs. Composite Options

Standard 4140 steel is the baseline for most industrial apps. It is tough, affordable, and easy to machine. However, it conducts heat well.

If you need thermal isolation, steel is the wrong choice. You might need a composite material or a low-conductivity alloy. Titanium is another option for high-stress, low-weight needs.

It handles high RPMs better than steel without the centrifugal load penalty.

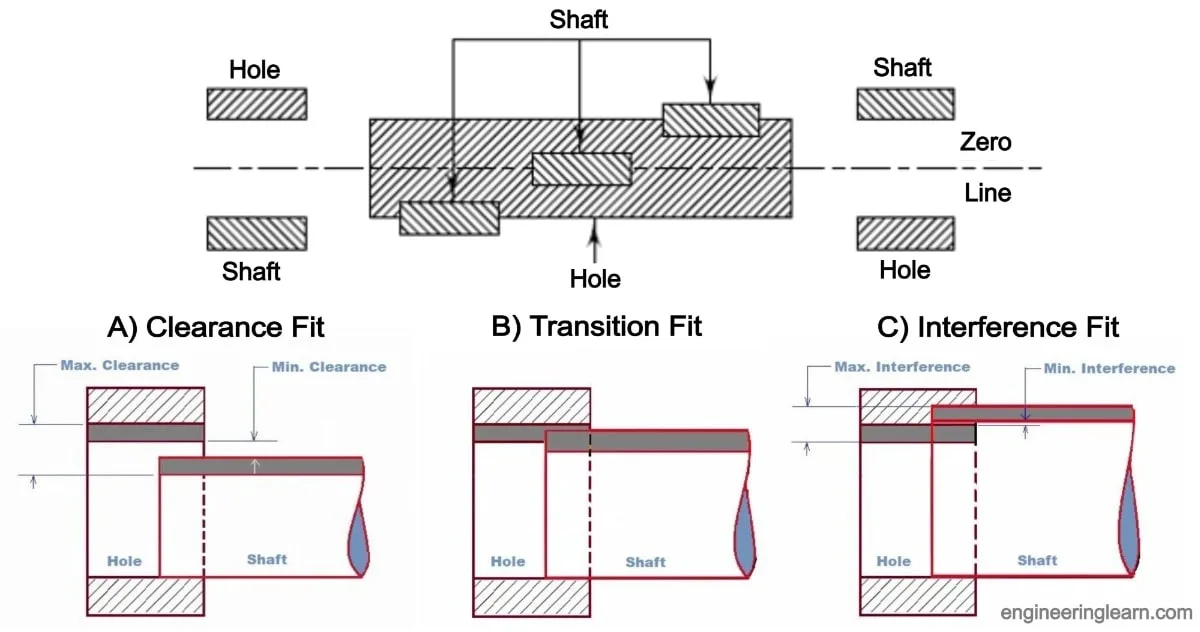

Interference vs. Clearance Fits

This is where most people get it wrong. A separator must not slip on the shaft. If it spins, it is useless.

You typically want a small interference fit. This means the separator hole is slightly smaller than the shaft diameter. You press it on or use heat to shrink it.

But do not go overboard. An interference fit that is too tight creates high residual stress. This leads to fatigue failure at the edges.

You want a secure grip, not a weld. Check the shaft diameter carefully. Any burr or scratch on the shaft will create a weak point.

Impact on Lubrication

The separator changes the internal geometry of the bearing pack. You must ensure oil can still flow to the critical points. A solid separator can block the oil grooves.

You might need to drill holes or use a slotted design. This allows the lubricant to reach the rolling elements. Without proper flow, you will have dry spinning and rapid wear.

Material selection is just one part of the puzzle. You also need to understand how the bearing itself acts under these conditions. Knowing the load limits of the rolling elements helps you design the spacing correctly.

This ensures the system stays within safe operating windows. Understanding load limits is a fundamental skill for any mechanical engineer working with rotating shafts.

Installation Best Practices and Common Pitfalls

A separator is only as good as its installation. You can have the perfect design and ruin it with a sloppy fit-up. Cleanliness is the biggest factor here.

A single particle of grit can ruin the raceway.

Preparation and Cleaning

Strip the shaft completely. Clean every square inch with a solvent. Use a lint-free rag.

Any dust or old grease is a contaminant. It will act like an abrasive between the separator and the shaft. This leads to fretting and eventual failure.

Take your time with this step. It is the cheapest insurance you can buy.

Thermal Expansion During Installation

If you are pressing a steel separator onto a steel shaft, be careful. The shaft expands with heat. So does the separator.

You want the separator to be cold or frozen. This shrinks the hole. You then press it onto the warm shaft.

As it cools, it locks in. If you do the opposite, you might not get the tight fit you need.

The "Force Alignment" Mistake

This is the most dangerous error. Do not use a separator to align a bent shaft. If the shaft is bent, the bearings will take up the load.

This will destroy them quickly. The separator is not a straightening tool. You must fix the shaft geometry first.

Measure the runout. If it is out of spec, do not install the separator. Address the root cause.

Torque and Preload Checks

Once installed, you must verify the bearing preload. The separator changes the overall length of the shaft stack. This might shift your preload settings.

Check the drag on the spindle. It should be smooth. No grinding or catching.

Use a dial gauge to measure the runout. It should stay within the manufacturer's tight tolerances. If the drag is high, you have too much preload.

This leads to overheating.

If you are working on automotive systems, the principles are similar but the tools differ. Car engines have specific clearances that are critical for longevity. You need the right equipment to handle these tasks without breaking parts.

A guide to automotive tools can help you find the right gear for engine work.

Cost, Lead Times, and Off-the-Shelf Alternatives

Image source: Bing (Web (fair-use with source credit))

Custom separators are expensive and slow. Most machining shops charge for setup, material, and heat treatment. As of 2026, a small batch can cost several hundred dollars per part.

Lead times often stretch past three weeks. This is why many engineers look for alternatives first.

When a Catalog Part Is Enough

You do not always need custom work. Standard stainless steel spacer sleeves are available from major bearing distributors. These are great for standard shaft sizes.

They handle basic spacing and mild thermal issues. If your requirements are simple, buy a catalog part. It saves money and time.

You can grab one off the shelf today.

The ROI Calculation

Does the custom part pay for itself? You have to look at bearing life. A separator might extend service intervals by fifty percent.

If downtime costs are high, the part pays for itself quickly. If downtime is cheap, a standard spacer is the smarter choice. Run the numbers before you cut the metal.

You need to know the cost of failure.

Managing the Budget

If you are stuck with a tight budget, look at hybrid solutions. You might use a standard spacer on one side and a custom piece on the other. This splits the cost.

It also reduces risk. One simple failure point is better than two complex ones. Talk to your supplier about off-the-shelf options that fit your diameter.

If you are managing a workshop, you need the right tools to handle these parts. A standard wrench might not be enough for the precise torque needed. You need dedicated equipment to ensure safety.

Essential tools for repair work can save you from costly mistakes during assembly.

Safety, Compliance, and Final Verdict

Safety is non-negotiable with rotating machinery. A slipped separator can cause catastrophic shaft failure. It can snap and fly into operators.

This is a serious hazard. You must follow strict protocols.

Risk of Structural Failure

The separator must not be overloaded. It has a specific load limit. Exceeding this causes fatigue cracks.

These cracks start small and grow fast. Eventually, the part shears off. You lose the shaft and the bearings.

This is why you use Finite Element Analysis before install. You verify the stress levels. If the numbers do not look right, stop.

Compliance and Standards

You must adhere to OEM manuals. They specify the exact fit and torque. Deviating from these is dangerous.

If your machine is in a regulated industry, you have extra rules. ASME and ISO standards guide the design. You document the installation.

You keep records of the part numbers. This protects you legally.

The Final Call

Use a separator only when data proves it. Do not use it for convenience. Do not use it to mask alignment errors.

It is a precision engineering tool. If you are unsure, stick to standard spacers. They are safer and easier to support.

When in doubt, consult a specialist. Do not guess on critical rotating components.

For complex industrial systems, you need heavy-duty extraction methods. Standard hand tools often lack the force required. You need hydraulic power to pull these parts out.

A complete guide to industrial pullers covers the heavy lifting required for large gearboxes and motors.
